3D Exclusive

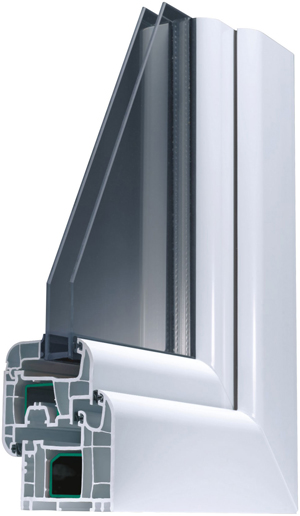

3D EXCLUSIVE windows combine perfect form with technical excellence. The harmonious curves of the frames and casements, and the perfectly adjusted skirting strip, give 3D EXCLUSIVE windows their refined appearance. The high thermal insulating power of the 3D system is due to the application of a five-chamber profile (76 mm deep) and a triple sealing system.
3D EXCLUSIVE windows, aside from the standard, shining white profile, are also available in a wide palette of smooth colours and wood-effects (including precious woods, in single- and double-sided veneers).
 |
EXCLUSIVE APPEARANCE
rounded frames and window casements
contemporary and timelessly elegant
rounded skirting strips
characteristic curved edges
gentle optic profile lines (internal and external) give the windows their special appearance

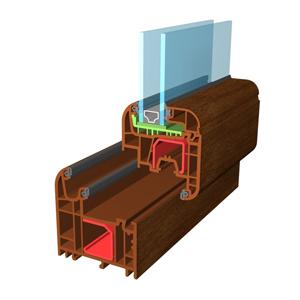

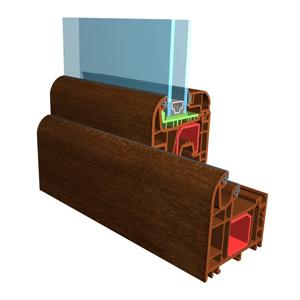

FRAME AND CASEMENT STRUCTURE
substantial, 76 mm wide casings allow for the possibility of five chamber division
robust steel reinforcements guarantee durability in use and stability of the shape
ADDITIONAL MIDDLE GASKET
triple sealing considerably increases the insulating power of the windows and provides optimal protection against harmful atmospheric conditions
it increases the service-free life of the mechanism
the middle gasket also offers perfect thermal and sound insulation
UNLIMITED GLAZING POSSIBILITIES
The possibility of choosing SALAMANDER 3D window glazing meets the requirements of thermal and sound insulation, and offers the highest possible anti-intrusion protection
QUALITY
RAL A (A-class) for any thickness of wall
FOR THE ENVIRONMENT
100% recyclable due to the use of high quality materials and steel reinforcements as standard
|
 |
 |
|
STANDARD FITTINGS FOR 3D EXCLUSIVE WINDOWS:
- five-chamber frame and five-chamber casement
- frame 76 mm wide, casement 76 mm wide
- 3-gasket system – two sealing gaskets and a middle gasket
- rounded skirting strip
- black or grey gasket from EPDM material
- 4/16/4 glass pane set with k=1.0 W/m2K coefficient
- ROTO NT fittings
- micro ventilation – micro ventilation fastening provides constant air flow
- false handle position barrier – with an integrated guide rail, this prevents hanging of the casement and simultaneously blocks hanging of an open window
- Roto handles in white, or adjusted to the colour of the veneer
- glazing board which guarantees safe transport and makes window sill assembly easier
|
|
| |
ADDITIONAL FITTINGS:
- handle brake
- hanging gradation
- friction brake
- balcony catch
- handle with key or button
- AERECO-supplied air outlets
- wide choice of glass pane sets
- a variety of anti-intrusion systems
- gasket – the glass rebate filling provides protection against dirt and makes window maintenance easier
|
OUR WINDOWS ARE:
- brilliantly white, with a smooth, shiny surface
- available in a wide range of colours
- attractive and exceptionally durable
- resistant to light and atmospheric conditions
- resistant to mechanical actions
- easy to clean and maintain
